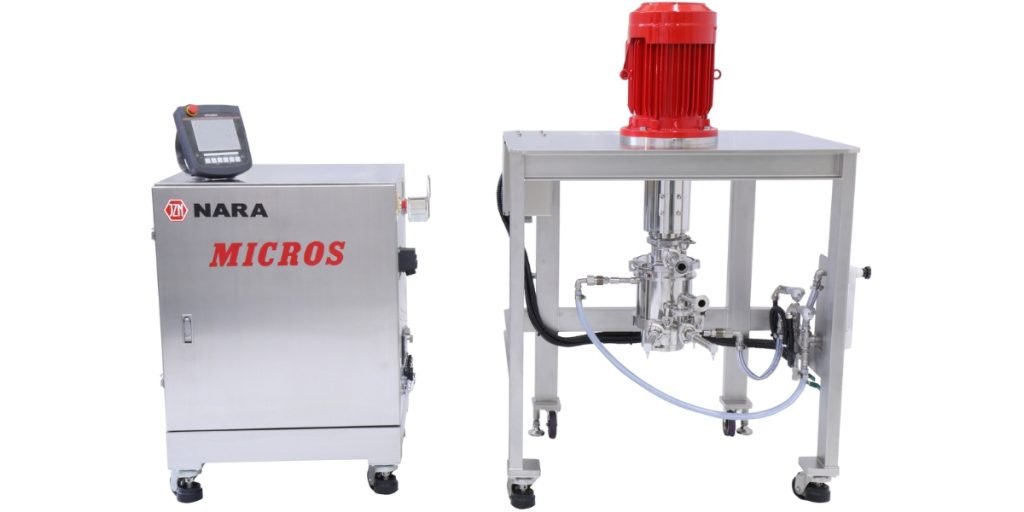

Nara Micros

Super‑Fine Wet Mill

A breakthrough alternative to traditional ball and bead mills, the Nara Micros utilizes a high-speed milling ring that both rotates and revolves within a jacketed vessel. As the ring presses material against the vessel wall, it generates intense compressive and shear forces, enabling rapid particle reduction to the single-micron or sub-micron scale in just 20–30 minutes

Key Highlights for Your Application Needs

High-viscosity slurry capability: Efficiently processes slurries with viscosities that challenge conventional mills
Organic solvent compatibility: Handles solvent-based systems safely.
Temperature control: Jacketed vessel allows precise cooling or heating of slurry
Fast milling time: Delivers fine dispersion much quicker than ball or bead mills
Flexible operation modes: Supports batch, continuous, or external circulation processes

Advantages

Fast & efficient – rapidly achieves sub-micron dispersion in high-viscosity mediums

Heat management – avoids thermal degradation through active cooling

Scalability – from lab‑scale MIC‑0 to industrial‑scale MIC‑30

Operational flexibility – batch, continuous, or circulation modes support diverse production setups

Easy media separation – milling rings are fixed to the subshaft for simple removal

Ideal For

R&D labs refining particle sizes

Production facilities requiring fine dispersion of pastes, inks, and nano-formulations

Industries demanding rapid turn-around and high-throughput wet milling

How our wet milling technology works?

At the heart of the Nara Micros is a high-speed rotating and revolving milling ring. This ring moves inside a jacketed cylindrical vessel designed for active temperature control. As the ring presses material outward against the inner vessel wall, it creates a powerful compression and shearing environment that rapidly disintegrates agglomerates and reduces particle sizes to the sub-micron or nano range. Unlike traditional media mills, there are no grinding beads to manage or separate, reducing downtime and contamination risks.

The result is:

Finer dispersion in a fraction of the time
High throughput even with viscous or thixotropic slurries
Better energy efficiency and lower operational noise

Typical Applications

Nanomaterials & Functional Powders

Titanium Dioxide (TiO₂) – Used in paints, coatings, and cosmetics, Nara Micros ensures uniform dispersion of nano-TiO₂ particles to prevent agglomeration and achieve superior opacity or UV protection.
Silica & Fumed Silica – Maintains dispersion stability in highly viscous formulations such as sealants and adhesives.
Carbon Black – Critical for conductive inks, batteries, and plastics; the mill achieves homogeneous dispersion, improving electrical conductivity and product performance.
Zinc Oxide, Alumina, Ceria – For electronics and advanced ceramics, Nara Micros supports precise control over particle morphology and slurry behavior.

Pharma Suspensions & Biotech Materials

Active Pharmaceutical Ingredients (APIs) – Enables micronization and stable suspension of poorly soluble compounds without damaging sensitive molecular structures.
Injectables & Ophthalmic Solutions – Produces uniform particle sizes for injectables, ensuring dosage consistency and bioavailability.
Lipid Nanoparticles – Helps in forming stable lipid-based carriers for advanced drug delivery systems, such as mRNA platforms.
Probiotics & Nutraceuticals – Processes sensitive bioactives with minimal heat buildup and oxygen exposure, preserving efficacy.

Food and Nutraceuticals

Protein Suspensions & Plant-Based Additives – Supports production of stable plant-based beverages and protein-enhanced formulations.
Flavor Oils & Emulsions – Achieves fine droplet sizes and uniform dispersion of oil-soluble flavors or aroma compounds.
Spices, Colors, & Natural Extracts – Processes botanical ingredients into micro-dispersed slurries suitable for beverages or sauces.
Hydrocolloids & Gums – Ensures even distribution of thickeners like xanthan gum or guar gum in complex food systems.

Pigments, Dyes & Paint Components

Organic and Inorganic Pigments – Facilitates development of stable, highly saturated pigment dispersions for inks, coatings, and plastic masterbatches.
Optical Effect Pigments – Maintains structural integrity of mica, pearl, and interference pigments during dispersion.
Textile Dyes – Enables consistent particle sizing for reactive and acid dye formulations, enhancing penetration and shade depth.

Cosmetic & Personal Care Ingredients

Creams, Lotions & Serums – Produces ultra-fine emulsions with smooth textures and stable viscosity for long shelf-life.
Mineral Components – Disperses zinc oxide and titanium dioxide for sunscreens and complexion products with high SPF.
Fragrance Encapsulation – Supports uniform dispersion of encapsulated fragrance particles without mechanical damage.

Advanced Ceramics & Refractories

Zirconia, Alumina, and SiC – Processes these materials into highly stable slurries for ceramic injection molding and additive manufacturing.
Refractory Binders & Fillers – Ensures homogeneity and enhances the mechanical strength of castables and monolithics.

Design Excellence

Jacketed Vessel for Thermal Regulation: Enables precise heating or cooling depending on material sensitivity.

Media-Free Operation: The milling mechanism eliminates the need for separation of grinding media from product slurry.

Robust Ring Construction: Rings are engineered to maintain performance under continuous operation, even in abrasive or chemically aggressive environments.
