NARA Pin mill
Ultra Fine milling. Small Footprint.

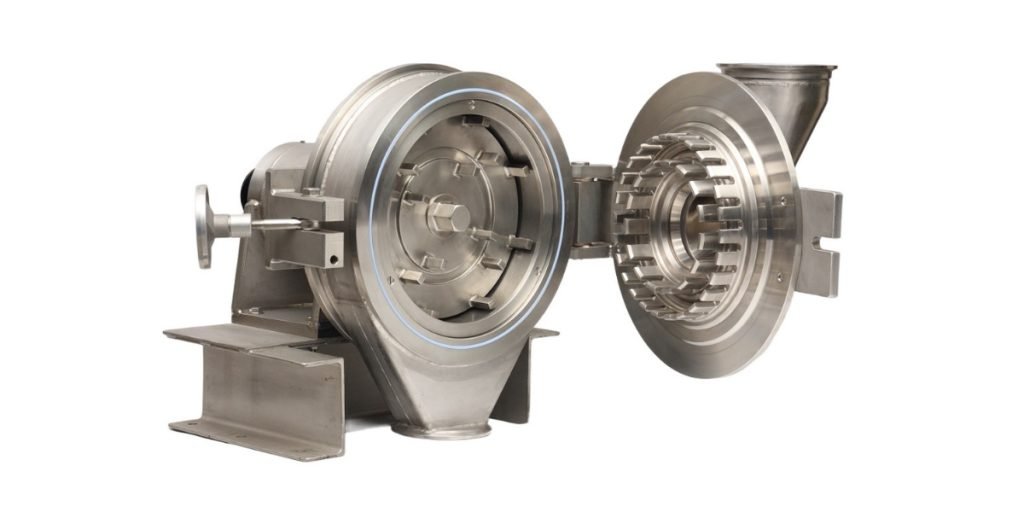

The Nara Pin Mill features a dual-disc pin design, where two interlocking steel discs—studded with pins—rotate at high velocity. This configuration generates high-impact and shear forces to efficiently break down materials into fine, uniform particles. Its compact structure maximizes performance while minimizing footprint, making it an ideal solution for space-constrained facilities.
Performance Highlights
- Ultra-Fine Grinding: Capable of delivering particle sizes below 40 μm with exceptional uniformity.
- Efficient Footprint: Compact design reduces floor space usage and simplifies integration.
- Heat Management Options: Features available for cryogenic or cooled milling, ideal for heat-sensitive materials
- Versatility: Effective on a wide range of substances, including dry powders, moist slurries, and heat-sensitive materials.
Design & Maintenance
-
Durable Construction: Rugged housing with easy-access design enables quick maintenance.
-
Replaceable Components: Interchangeable pin discs and sealing systems reduce downtime.
-
Variable Speed Control: VFD-driven motors allow adjustable rotor speed for product optimization.
-
Customized Configurations: Stainless steel, flame-proof motors, integrated feeders, and cooling systems available depending on application requirements
Key advantages
- Enhanced Milling Efficiency
Faster tip‐speeds and precise pin configurations yield finer grind than conventional hammer mills, with lower energy consumption. - Compact & Space‑Saving
Its streamlined profile enables easier installation in smaller settings, reducing required floor space. - Heat‑Sensitive Material Handling
Optional cryogenic or chilled milling allows processing of heat-sensitive and volatile compounds without degradation
Typical Applications
Pharmaceuticals
Micronizing heat-sensitive APIs without thermal degradation
Producing fine-grade excipients for improved tablet compressibility
Pre-milling granules for uniformity prior to downstream processes
Achieving tight particle size distribution for controlled drug release
Food and Beverage industry
Grinding of spices, herbs, and seasonings into ultra-fine powders
Pulverizing sugar, salt, starch, and flour to uniform fineness
Producing powdered beverage bases or instant drink mixes
Micronizing protein supplements or dietary fiber additives
Cosmetics & Personal Care
Creating silky powders for foundations and blushes
Micronizing mineral components for sunscreens
Fine-grinding exfoliants and herbal extracts
Chemical & Fine Chemical Industry
Pulverizing pigments and dyes for consistent color development
Grinding fine fillers used in plastics, coatings, and adhesives
Producing catalysts or absorbents with high surface area
Micronizing additives and specialty compounds
Agricultural & Nutraceuticals
Pulverizing herbal supplements and botanical extracts
Grinding feed-grade additives and veterinary formulations
Creating fine fertilizer blends or seed coatings
Industrial Materials & Ceramics
Micronizing ceramic powders for advanced materials
Preparing fine abrasives or polishing compounds
Grinding refractories and minerals for high-temperature applications

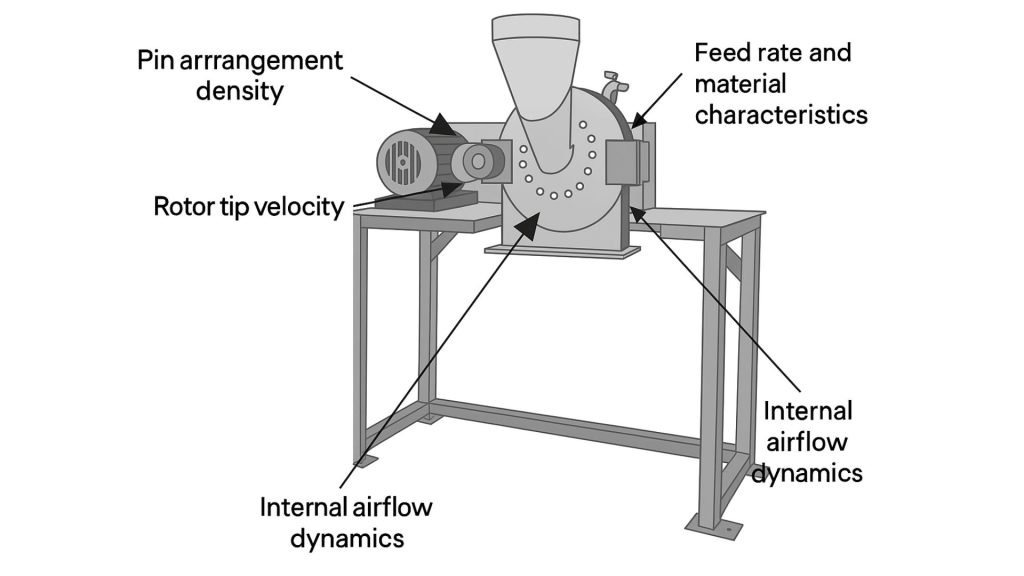

Optimizing Milling Performance
Factors influencing grind quality include:
Pin arrangement density
Rotor tip velocity
Feed rate and material characteristics
Internal airflow dynamics
Performance can be maximized by increasing rotor speed and optimizing feed/airflow ratios
Why Choose Nara Pin mill?
- Unmatched Cleanability – Designed for rigorous clean-in-place (CIP) and sanitary readiness.
- Contamination-Free Operations – Air-sealed design and belt-less construction protect product quality.
- Low Maintenance Overhead – Maintenance-free bearings and robust engineering simplify operations.
- Indian Support, Japanese Innovation – Installed and supported locally, leveraging NARA’s engineering standards.
Connect with us for your Milling Needs
Looking for a GMP-grade pulverizer for precision production?
